Inside the NETGEAR WNAP320: Exploring Firmware Emulation Techniques

My research began by studying how router firmware can be emulated in two popular ways.

1. With The Firmware Analysis Toolkit
2. Using Firmadyne

Fusing Firmware Analysis Toolkit

Starting our adventure into emulator router firmware, we have Firmware Analysis Toolkit (FAT). This is a complete toolkit that includes firmware image analysis and bin images.

Tools You Will Need

What you will need beforehand:

• Ubuntu: The Firmware Analysis Toolkit runs from the command line on a Linux environment, and Ubuntu is an easy-to-use option.
• Firmware Analysis Toolkit: Tool for analyzing (x86) firmware. You can download it from here. With this powerful toolkit, you would be able to effortlessly analyze and emulate firmware images.
• Firmware File: Netgear WNAP320 Firmware.

Setting Things Up

1. Prerequisites

Ensure that all the dependencies are installed before downloading the Firmware Analysis Toolkit. Copy these commands into your terminal:

            sudo apt-get update
            sudo apt-get install git python3 python3-pip python3-dev


2. Clone the Firmware Analysis Toolkit

If you do not already have GIT installed, download it! Clone the Firmware Analysis Toolkit repository onto your local machine using Git:

            git clone https://github.com/attify/firmware-analysis-toolkit.git
            cd firmware-analysis-toolkit


3. Install the Binwalk Dependencies

Run the following commands to install the necessary dependencies and tools:

            cd firmware-analysis-toolkit/binwalk
            sudo ./deps.sh
            sudo python setup.py install


4. Download the Firmware

Get a firmware image for your NETGEAR WNAP320 device. This is usually available on the manufacturer's support website.

5. Emulating Firmware Image

Run the following command to emulate the firmware image:

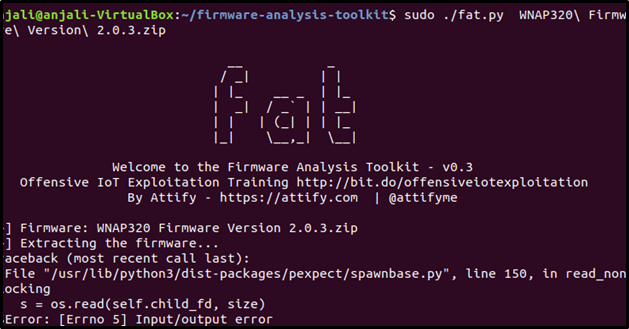

            sudo ./fat.py WNAP320\ Firmware\ Version\ 2.0.3.zip


Above could be the error you could get. Don't worry, u can go with method no. 2

Emulating Firmware with Firmadyne

Firmadyne

Another very useful tool for firmware emulation, Firmadyne is designed specifically to automatically extract, configure, and emulate firmware within a controlled system. It makes it easier to analyze firmware behavior, provides flexibility, and lets you observe the intricate details surrounding vulnerabilities.

Tools You Will Require

You will need to have the following items before you get started:

• Ubuntu (Version 18 or 22): Like the Firmware Analysis Toolkit, Firmadyne runs better on Linux-based OS like Ubuntu.
• Firmadyne: Download Firmadyne from here.
• Firmware Image: The firmware you want to emulate. For this setup, we will use the NETGEAR WNAP320 firmware.

Setting Things Up

1. Install Prerequisites

First, install all the required tools and dependencies that Firmadyne needs:

                sudo apt install busybox-static fakeroot git dmsetup kpartx netcat-openbsd nmap python3-psycopg2 snmp uml-utilities util-linux vlan python3-pip python3-magic


2. Make Python 3 Default

Some systems come with Python 2 pre-installed, so you may want to set Python 3 as the default interpreter:

                sudo update-alternatives --install /usr/bin/python python /usr/bin/python3 10


3. Clone The Firmadyne Repository

Clone the Firmadyne repository from GitHub:

                git clone --recursive https://github.com/firmadyne/firmadyne.git


4. Clone Binwalk

                git clone https://github.com/ReFirmLabs/binwalk.git


5. Install Binwalk Dependencies

                cd binwalk
                sudo ./deps.sh
                sudo python ./setup.py install


6. Install PostgreSQL

Firmadyne uses PostgreSQL for storing firmware data. Install and initialize the database:

                sudo apt install postgresql
                sudo -u postgres createuser -P firmadyne
                (Enter password for 'firmadyne' user)
                sudo -u postgres createdb -O firmadyne firmware
                sudo -u postgres psql -d firmware < ./firmadyne/database/schema


7. Fetch More Firmadyne Resources

                cd firmadyne
                ./download.sh


8. QEMU Installation

Install QEMU along with the required architectures and utilities:

                sudo apt install qemu-system-arm qemu-system-mips qemu-system-x86 qemu-utils

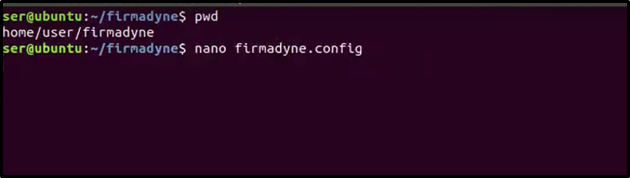

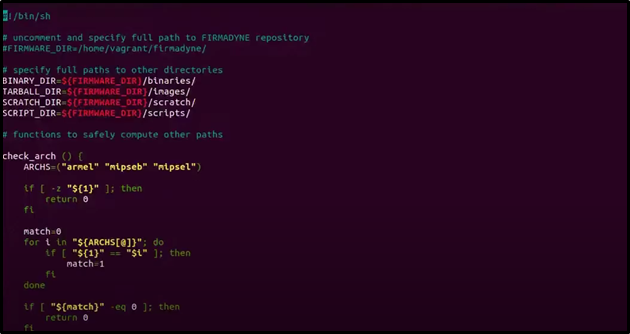

9. Edit Firmadyne Configuration

10. Extracting The Firmware

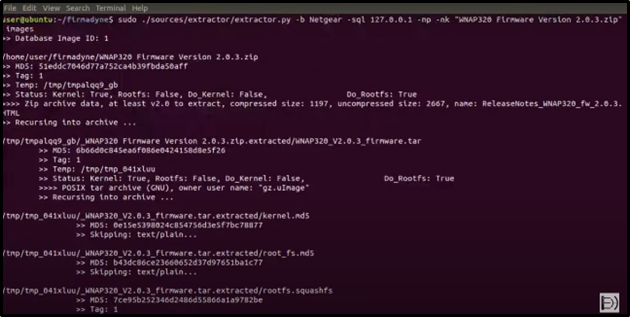

Extract the NETGEAR firmware using Firmadyne's extractor tool:

                python3 ./sources/extractor/extractor.py -b Netgear -sql 127.0.0.1 -np --nk "$ZIP_FILE" images


Confirm that the firmware was extracted successfully:

                ls images


11. Get Firmware Architecture

Run the following command to determine the firmware architecture:

                ./scripts/getArch.sh ./images/1.tar.gz


12. Upload the Firmware to the Database

                ./scripts/tar2db.py -i 1 -f ./images/1.tar.gz


13. Create the Emulation Image

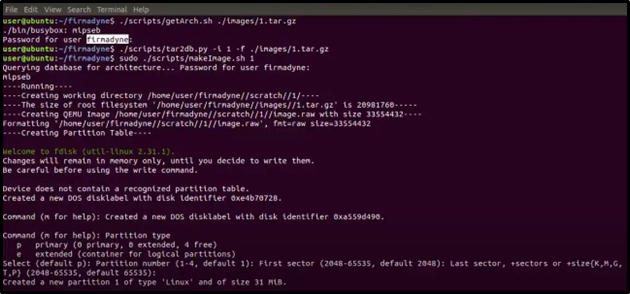

                sudo ./scripts/makeImage.sh 1


14. Infer the Network Configuration

                ./scripts/inferNetwork.sh 1


15. List Emulated Files

                ls scratch/1/


16. Run the Emulation

Execute the firmware in the emulated environment:

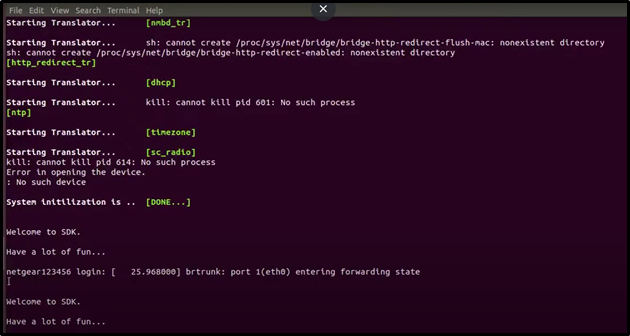

                ./scratch/1/run.sh


Credentials:

                USERNAME: admin
                PASSWORD: password


FINALLY!!! EMULATION IS DONE!!

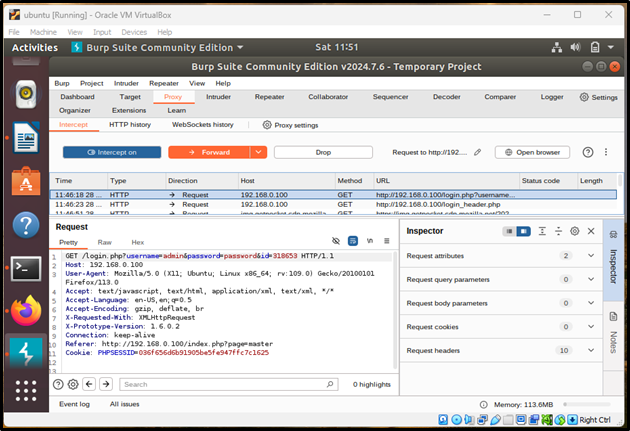

17. Intercepting Traffic on Burp Suite

After emulation, set a proxy in Firefox and intercept traffic using Burp Suite.
