    SPI 102:
    FIRMWARE EXTRACTION

    Advanced firmware extraction techniques using CH341A programmer, SOIC8 clips, and Flashrom for hardware security

    Firmware Extraction

    Now that we've covered the basics of SPI communication and flash memory, it's time to put that knowledge into action. In this part of the series, we'll walk through the essential tools and setup needed to interface with SPI flash chips.

    Firmware extraction

    Table of Contents

    1. Introduction
    2. Tools Required
    3. Understanding the CH341A Programmer
    4. SOIC8 / SOP8 Test Clip
    5. Connecting CH341A to SOIC8 to DIP8 Adapter
    6. Connecting the SOIC8 Clip to the Target Chip
    7. Flashrom: Overview and Setup on Linux
    8. Extracting the BIN File with Flashrom
    9. Conclusion
    10. What's Next

    Introduction

    Now that we've covered the basics of SPI communication and flash memory, it's time to put that knowledge into action. In this part of the series, we’ll walk through the essential tools and setup needed to interface with SPI flash chips. This includes choosing the right programmer, understanding physical connection methods, and using open-source software to communicate with the chip.

    We’ll specifically cover:

    • An introduction to the CH341A programmer and how it works.
    • How to use an SOIC8/SOP8 clip and SOIC8 to DIP8 Adapter to physically connect to a flash chip.
    • The role of Flashrom, a powerful tool for reading and writing SPI memory.
    • Step-by-step instructions on how to extract a binary (bin) file from a device.

    By the end of this post, you’ll be able to confidently set up your hardware and software environment and perform your first firmware extraction from an SPI flash chip.

    Tools Required

    CH341A USB Programmer

    For interfacing with SPI flash chips

    SOIC8 to DIP8 Adapter

    Converts surface-mount layout to DIP for easier handling

    SOIC8 Test Clip

    Connects to chip in-circuit without desoldering

    Target Device

    Any hardware containing a compatible SPI flash memory chip

    Flashrom Utility

    Open-source software used to read/write chip

    Understanding the CH341A Programmer

    The CH341A is a USB-based EEPROM and SPI flash programmer commonly used in hardware hacking, BIOS recovery, and firmware extraction tasks. It's affordable, widely available, and supported by tools like Flashrom.

    Key Uses:

    • Reading and writing SPI flash chips (e.g., 25 series chips)
    • Programming I2C EEPROMs (e.g., 24 series chips)
    • Recovering or modifying BIOS/firmware on devices

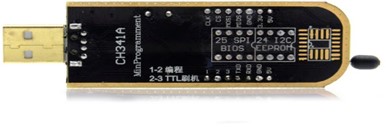

    CH341A Programmer
    1

    Front Side Overview

    • IC Block/ZIF Socket (DIP8) – Insert DIP or SOIC chips (using adapter) for direct programming
    • Program/Power Pins – Available for using with clips, jumpers, or manual connection
    • USB Interface – Plugs directly into a computer for power and data communication
    CH341A Programmer
    2

    Back Side (Labeling)

    You'll often see labels like:

    • 25 SPI – for 25 series SPI flash memory
    • 24 EEPROM – for 24 series I2C EEPROMs
    3

    Important Notes

    • The 25 series (e.g., W25Q32, MX25L8005E, AT25DF321) is the most common SPI flash memory type used in BIOS and firmware storage.
    • The 24 series chips use the I2C protocol and are not the focus of SPI-based firmware extraction.
    • Always confirm the chip series before selecting the mode and connection method.
    • Some chips operate at 1.8V – a voltage adapter is required in such cases to avoid damage.

    SOIC8 to DIP8 Adapter

    The SOIC8 to DIP8 adapter is a small PCB used to convert an 8-pin surface mount flash chip (SOIC-8) into a standard 8-pin DIP layout, which fits into the ZIF socket of the programmer.

    SOIC8 to DIP8 Adapter
    1

    Why It's Needed

    • SPI flash chips are usually in SOIC-8 (Surface-Mount) form and can't be plugged directly into a programmer.
    • This adapter routes pins to the correct DIP spacing (2.54mm) so they can be used with tools like the CH341A.
    2

    Common Use Cases

    • When the chip has been desoldered from the target board.
    • When using a test clip - the clip wires often go through this adapter before connecting to the programmer.
    3

    Important Notes

    • Always check pin 1 orientation when inserting the adapter into the programmer.
    • The adapter should be labeled with pin numbers matching the chip's datasheet.

    SOIC8 / SOP8 Test Clip

    The SOIC8 clip is a specialized tool that allows you to connect to SPI flash chips directly on the circuit board without removing them. It grips the chip from the top, making temporary electrical contact with all 8 pins.

    1

    Why It's Useful

    • Enables in-circuit programming (no need to desolder the chip)
    • Works with common 8-pin SPI flash chips found in routers, laptops, TVs, and more
    SOIC8 Test Clip
    2

    Important Points

    • Pin 1 alignment is critical – always match the clip's pin 1 with the chip's pin 1.
    • Ensure firm and stable contact; loose connections can cause read/write errors.
    • Use in combination with SOIC8 to DIP8 adapter to route the clip to the programmer.
    3

    Best Practices

    • Works best when the target device is powered off and fully discharged to avoid interference or damage.
    • Use proper lighting and a magnifier if necessary – misalignment can corrupt data or damage hardware.

    Connecting CH341A to SOIC8 to DIP8 Adapter

    Once you have your CH341A programmer and SOIC8 to DIP8 adapter ready, you need to connect them properly to ensure reliable communication with the SPI flash chip.

    1

    Set the programmer to SPI Mode

    The CH341A supports both 24 and 25 series chips.

    • For SPI flash (e.g., Winbond, Macronix), you're working with the 25 series.
    • This means your chip or adapter should be placed on the 25 SPI BIOS side of the ZIF socket (usually labeled on the PCB).
    2

    Identify Pin 1 on the adapter

    Pin 1 of the 25 SPI BIOS section is the top-right corner, closest to the latch lever of the ZIF socket.

    CH341A SPI Mode
    3

    Insert adapter into ZIF socket

    Place the SOIC8 to DIP8 adapter into the programmer so that Pin 1 of the adapter is aligned with Pin 1 of the ZIF socket.

    If you're unsure, a reliable rule is:

    • Pin 1 of the adapter should face the direction of the latch lever on the ZIF socket.
    4

    Lock the adapter

    Once aligned, close the latch gently to secure the adapter in the socket.

    Double-check the orientation before powering the device via USB.

    Adapter Insertion

    Connecting the SOIC8 Clip to the Target Chip

    Once your CH341A and SOIC8 to DIP8 adapter are properly connected, the next step is to attach the SOIC8 clip to the SPI flash chip on the target device.

    1

    Locate the SPI Flash Chip

    • Look for an 8-pin SOIC chip on the target board (usually labeled with names like W25Q32, MX25L8005, etc.).
    • Confirm it's a 25-series SPI chip by checking its part number online or in the datasheet.
    2

    Identify Pin 1 on the Chip

    • Pin 1 is usually marked by: a dot or dimple on the top of the chip.
    • A notch on one end of the chip body.
    Pin 1 Identification
    3

    Attach the SOIC8 Clip

    • Carefully press the clip over the chip so that Pin 1 on the clip aligns with Pin 1 on the chip.
    • The Pin 1 on the clip is color coded PINK.
    • The clip should grip firmly and all pins must make proper contact.
    4

    Connect the Clip to the Adapter

    • The clip's wires (often color-coded) go into the SOIC8 to DIP8 adapter.
    • Make sure the wire for Pin 1 goes to Pin 1 of the adapter (which should already be inserted into the 25 SPI BIOS side of the programmer, facing the latch).
    SOIC8 Clip Connection
    5

    Best Practices

    • Power off target device completely before connecting the clip.
    • Press and hold the clip in place gently during read/write operations if needed.
    • Use proper lighting and a magnifier if necessary – misalignment can corrupt data or damage hardware.
    Clip to Adapter Connection

    Flashrom: Overview and Setup on Linux

    What is Flashrom?

    Flashrom is an open-source tool for SPI flash memory access (read/write/verify/erase). It works with many programmers and chipsets, making it a versatile choice for hardware hackers and firmware researchers.

    Key Features

    Works with many programmers and chipsets, supports reading and writing flash memory non-destructively, runs on Linux, macOS, and Windows.

    1

    Installing Flashrom on Linux

    Installation Commands:

    sudo apt update
    sudo apt install flashrom
    2

    Check if CH341A is Detected

    Connection Check:

    lsusb

    You should see a line like:

    ID 1a86:5512 QinHeng Electronics CH341A Serial Converter

    Extracting the BIN File with Flashrom

    Once the CH341A is properly detected, you can use Flashrom to read the contents of the SPI flash chip and save them to a binary file.

    1

    Read the Flash Chip

    Extraction Command:

    sudo flashrom --programmer ch341a_spi -r Dlink.bin
    • --programmer ch341a_spi tells Flashrom to use the CH341A in SPI mode.
    • -r Dlink.bin saves the dump to a file named Dlink.bin.
    Final Connection Setup
    Flashrom Terminal Output

    Result:This command creates a binary file containing the raw contents of the flash chip, which can later be analyzed, modified, or used for restoration.

    Conclusion

    In this post, we covered all the essential tools and steps needed to successfully extract firmware from an SPI flash chip using a CH341A programmer. We introduced the key hardware components including the SOIC8 clip, SOIC8 to DIP8 adapter, and the CH341A and demonstrated how to make proper connections, identify pin orientation, and safely interact with the target chip. We also walked through setting up Flashrom on Linux and using it to dump the contents of the chip into a .bin file.

    With this knowledge, you now have the ability to access low-level firmware data from devices – a crucial step in many hardware security tasks. Understanding these fundamentals is essential before attempting to interface with real hardware.

    ←
